  M2BU3
M.2 key B USB 3.0 module to mini card Rev 2.1 Adapter






Brief Taiwan 1 Taiwan 2 China
Buy It Now


    產品概要


The M2BU3 adapter is designed for desktop/Laptop PCs that convert 5G/4G/3G wireless M.2 key B USB 3.0 module to full/half mini card Rev 2.1 slot.
 You can insert your M.2 card (Socket 2 SSIC-base WWAN) such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter.



        產品功能


  • Allows user to use M.2 Socket SSIC-based WWAN Module to mPCIe Slot in the Desktop or Laptop.
  • Supports USB 3.0 interface of M.2 Cards (Socket 2 SSIC-base WWAN) such as 2G GSM, GPRS, 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, 4G, WiMAX, LTE, Mini Card to desktop PC.
  • Support Full size and half size mPCIe slot



        產品規格


  • USB 3.0 M.2 B key Card to mini card Rev 2.1 adapter.
  • M.2 Specification Revision 1.0
  • Universal Serial Bus Specification Revision 3.0
  • Support 2230/2242 M.2 Card dimension.
  • Support M.2 Socket SSIC-based WWAN Module.
  • Support M.2 Key B Card Type.

        系統需求


  • Mini PCI-E slot support mini card Specification Revision 2.1



M.2 (NGFF) to mini PCI-E Adapter comparison
Model Name M2BU3S-U3S M2BU3S-U2S M2BU3S-SU M2BU3S-PU M2MU2
Function M.2 to mini card Rev 2.1 M.2 to mini card Rev 2.1 M.2 to mini card Rev 2.1 M.2 to mini card Rev 2.1 M.2 to mPCIe
Interface USB 3.0 USB 2.0 SATA PCIe 2x USB 2.0
M.2 SPEC Socket 2 SSIC-based WWAN Socket 2 SSIC-based WWAN Socket 2 SATA-based Socket 2 SSIC-based WWAN Socket 2 SSIC-based WWAN
Application 4G / 3G / CDMA / LTE / GPS module 4G / 3G / CDMA / LTE / GPS module SATA SSD module PCIe 2x module 4G / 3G / CDMA / LTE / GPS module
Module KEY B B B / B+M B B
Support Card Type 2230/2242/3030/3042 2230/2242/3030/3042 2230/2242/3030/3042 2230/2242/3030/3042 2230/2242/3030/3042

M.2 (NGFF) to mini PCI-E Adapter comparison
Model Name M2MP1 M2MP1-E M2MP3-A M2MP3-E M2MS1
Function M.2 to mPCIe M.2 to mPCIe M.2 to mPCIe M.2 to mPCIe M.2 to mSATA
Interface PCIe & USB2.0 PCIe & USB2.0 PCIe & USB2.0 PCIe & USB2.0 SATA
M.2 SPEC Socket 1
First PCIe Lane
Socket 1
First PCIe Lane
Socket 1
Second PCIe Lane
Socket 1
Second PCIe Lane
Socket 2 SATA-based
Application WiFi+BT module WiFi+BT module WiFi+BT module WiFi+BT module SATA SSD module
Module KEY A E A E B / B+M
Support Card Type 2230/2242/3030/3042 2230/2242/3030/3042 2230/2242/3030/3042 2230/2242/3030/3042 2230/2242/3030/3042

購物車及包裝內容




M2BU3S-U3S 請連絡業務
M2BU3S-U3S
M.2 key B USB 3.0 module to mini card Rev 2.1 Adapter x1
with SIM Card slot
Screw x4
Flat-Head Screw x2

Washer x2



M2BU3S-U3D 請連絡業務
M2BU3S-U3D
M.2 key B USB 3.0 module to mini card Rev 2.1 Adapter x1
with Dual SIM Card slot
Screw x4
Flat-Head Screw x2

Washer x2



M2BU3S-U3 請連絡業務
M2BU3S-U3
M.2 key B USB 3.0 module to mini card Rev 2.1 Adapter x1
without SIM Card slot
Screw x4
Flat-Head Screw x2

Washer x2



M2BU3S-U2S 請連絡業務
M2BU3S-U2S
M.2 key B USB 2.0 module to mini card Rev 2.1 Adapter x1
with SIM Card slot
Screw x4
Flat-Head Screw x2

Washer x2



M2BU3S-U3D 請連絡業務
M2BU3S-U3D
M.2 key B USB 3.0 module to mini card Rev 2.1 Adapter x1
with Dual SIM Card slot
Screw x4
Flat-Head Screw x2

Washer x2



M2BU3S-U3 請連絡業務
M2BU3S-U3
M.2 key B USB 3.0 module to mini card Rev 2.1 Adapter x1
without SIM Card slot
Screw x4
Flat-Head Screw x2

Washer x2



M2BU3S-SU 請連絡業務
M2BU3S-SU
M.2 key B SATA SSD module to mini card Rev 2.1 Adapter x1
Screw x4
Flat-Head Screw x2

Washer x2



M2BU3S-PU 請連絡業務

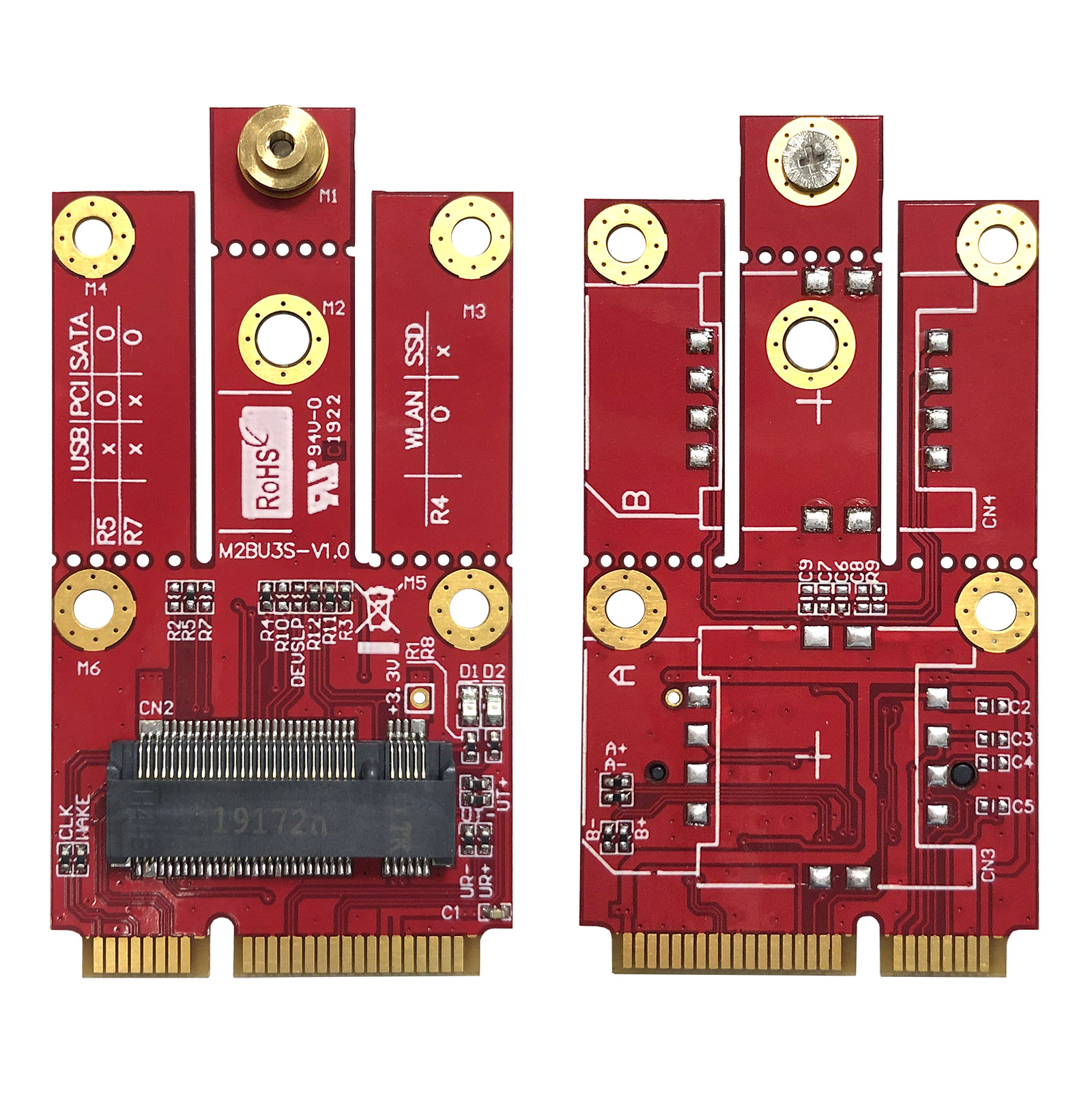

M2BU3S-PU
M.2 PCIe x2 module to mini card Rev 2.1 Adapter x1
Screw x4
Flat-Head Screw x2

Washer x2



相關選購產品


M2MP1
M2MP1-E
M2MP3-A
M2MP3-E
