MP2 Mini PCI-E / PCI-E adapter ver 2.01
Introduction:

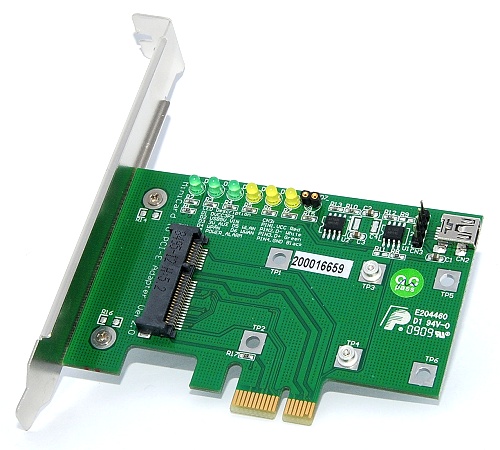

The PCI-E Mini Card passive adapter is designed for desktop PCs that convert Mini-Card to USB port or standard PCI-Express 1x slot.

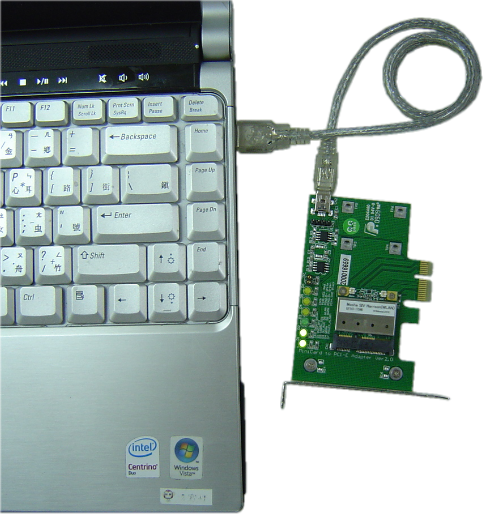

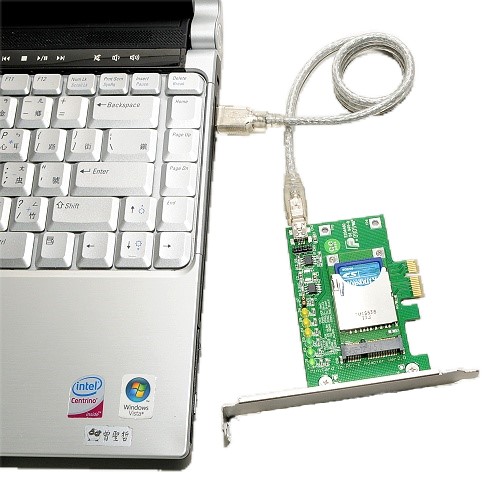

You can insert your USB type minicard to this adapter then plug to USB port through USB cable.

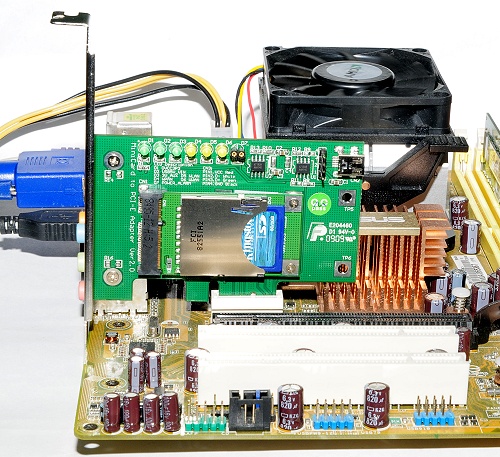

Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector.
 |
 |
 |
 |
Features
- Mini PCI express to PCI express 1x converter.
- Allows user to test PCI Express Mini modules on the PCI Express slot or USB port.
- Supports two primary system bus interface: PCI Express and USB.
- Supports all of Mini-Cards such as SSD,Tturbo memory, 3G,CDMA, WLAN,WWLAN, MODEM Mini Card to desktop PC.
Package Contents:
- Mini PCI-E / PCI-E adapter x1 USB to mini-USB cable x1
System Requirements
- PCI-Express 1x slot or USB port
- Windows 2000, XP, Vista 32/64
- Linux
MPxx products functions comparison
|
MP1 |
MP2 |
MP2W |
MP2A |
Converts Mini-Card to USB port or standard PCI-Express 1x slot. |
√ |
√ |
√ |
√ |
Supports Standard Height PCI Express bracket |
√ |
√ |
√ |
√ |
Supports Low Profile PCI Express bracket |
|
√ |
|
√ |
Support Full-Mini Card dimension |
√ |
√ |
√ |
√ |
Support Half-Mini Card dimension |
|
√ |
√ |
√ |
Add u.FL/IPX to RP-SMA pigtail WiFi RF cable |
|
|
√ |
√ |
Add SIM card connector |
|
|
|
√ |
