  Intel® Wi-Fi 6 AX200
Dual Band, 2x2 Wi-Fi 6 + Bluetooth® 5

Intel® Wi-Fi 6 AX200

Nearly 40% higher peak data rates and up to 4x capacity

The Intel® Wi-Fi 6 AX200 adapter is designed to support the upcoming IEEE 802.11ax standard – Wi-Fi 6 technology and the Wi-Fi Alliance Wi-Fi 61 certification. The product supports 2x2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering data rates of up to 2.4Gbps2 and increased network capacity as well as Bluetooth® 5 support. These new features deliver a significant improvement in user experience in dense deployments, supporting fast uploads and downloads, lower latency and longer battery life compared to solutions supporting 802.11ac. Combined with Intel® Core™ processors and exceptional Intel wireless innovations, the Intel® Wi-Fi 6 AX200 module can provide Gigabit wireless speed2 and dramatically improve your connected experience at home, work, or on the go.

Product Name Intel® Wi-Fi 6 AX200
Model Name

AX200NGW

Version M.2: PCle, USB

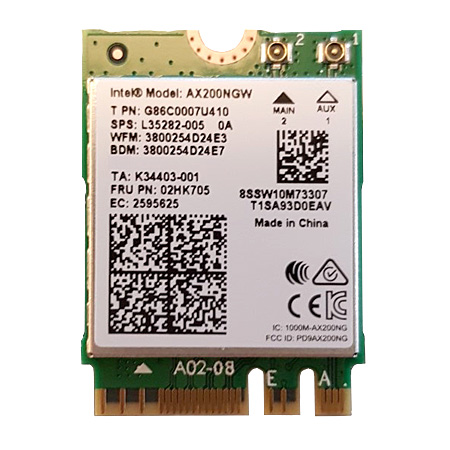

Product Picture
產品圖像
製品画像
Price
價格
価格


Related Items
相 關 配 件
RF22008B
MHF4-RPSMA cable 8cm
US$ 3.
RF12008B
MHF4-SMA cable 8cm
US$ 3.





    1st GENERATION INTEL Wi-Fi 6 WIRELESS

Increased Capacity Faster Speed
Better Coverage
Extended battery life

802.11ax Dual band 2x2, 160MHz
By implementing the new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT) and spatial reuse, Intel® Wi-Fi 6 AX200 module enables smooth streaming of high resolution videos, fewer dropped connections, and faster connections farther away from the router and in dense environments.
When using Wi-Fi 6 technology with 1024QAM and 160MHz channels, Intel® Wi-Fi 6 AX200 module can deliver nearly 40% higher peak data rates3 (up to 2.4Gbps) and up to 4x capacity improvement in dense or congested environments comparing to 802.11ac4.
Bluetooth® 5 Bluetooth® 5 provides 4x5 range over Bluetooth® 4.2 using the same Tx power, enabling coverage throughout the home. Bluetooth® 5 also doubles data rates speed for faster transmissions thereby reducing the overall power consumption. Additionally, Bluetooth® 5 adds new enhanced data broadcasting enabling seamless services such as location-based services and simpler pairing for Bluetooth® devices.
Microsoft Windows 10*
Full support for latest Microsoft Windows 10* OS.
M.2 2230 Form Factors M.2 2230 modules enable system configuration and platform usage flexibility with the use of a standard Key E socket for attaching the module.


   EXPERIENCE THE INTEL® DIFFERENCE

Worldwide Regulatory Support
Intel® Dynamic Regulatory Solution
Enables performance optimized worldwide regulatory compliance SKU. The Intel® Wi-Fi 6 AX200 module detects its location and automatically optimizes the Wi-Fi settings to local regulatory requirements, maximizing performance in each geography, simplifying travel experience and global enterprise procurement. Future regulatory changes are easily managed during the product life cycle.
Wireless Functionality in
Pre-boot Environment
Support for Wi-Fi network and BLE HID connectivity in the platform’s UEFI (Unified Extensible Firmware Interface) environment during its boot stage. This capability enables use cases like OS recovery over Wi-Fi and BLE-based keyboard and mouse connectivity in this pre-boot environment.
Wirelessly Project to the Big Screen Project your 2-in-1 or laptop content instantly, without wires, on the big HD screen with stunning image clarity and sound using Wi-Fi Miracast*. Stream movies, videos, games, photos, connect with friends, and more. Experience it all, bigger and better than ever before.


    BUSINESS-CLASS WIRELESS

Intel® vPro™ Technology6 Supports Intel’s hardware-based security and management features built into Intel® Core™ vPro™
processors and chipsets that enables IT to manage PCs virtually anywhere, anytime while reducing
deployment costs, improving security and ROI.
Intel® Active Management Technology7 Using integrated platform capabilities and popular third-party management and security applications,
Intel® AMT allows IT or managed service providers to better discover, repair, and protect their
networked computing assets. Intel® AMT is a feature of Intel® Core™ processors with Intel® vPro™
technology.

    INTEL® Wi-Fi 6 AX200 MODULE TECHNICAL SPECIFICATIONS

Dimensions (H x W x D) M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)]
Weight M.2 2230: 2.83 +/– 0.3 g
Radio ON/OFF Control Supported
Connector Interface M.2: PCIe, USB
Operating Temperature (Adapter Shield) 0°C to +80°C
Humidity Non-Operating 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
Operating Systems Microsoft Windows* 10, Linux*, Chrome OS*
Wi-Fi Alliance8 Wi-Fi CERTIFIED* a, b, g, n, ac with wave 2 features, WMM*, WMM*-Power Save, WPA*, WPA2*, WPS*, PMF*, Wi-Fi Direct*, Wi-Fi Miracast* , Wi-Fi Agile Multiband*, Wi-Fi Optimized Connectivity*, Wi-Fi Location, Passpoint*, Wi-Fi Aware*, and Wi-Fi TimeSync*
IEEE WLAN Standard IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, g, n, ac, ax, d, e, h, i, k, r, u, v, w, ai; Fine Timing Measurement based on 802.11-2016
Bluetooth Version 5

   SECURITY FEATURES9

Security Methods WPA* and WPA2* Personal and Enterprise; WPA3* (pending OS support)
Authentication Protocols 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0 -MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’)
Encryption 64-bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 256-bit AES-GCMP

   COMPLIANCE

Regulatory For a list of country approvals, please contact your local Intel representatives.
US Government FIPS10 140-2, FISMA
Product Safety UL, C-UL, CB (IEC 60950-1)



Product Name Model Number Version
Intel® Wi-Fi 6 AX200 AX200NGW 802.11ax13, 2x2, Bluetooth® 5, M.2 2230

  1. Wi-Fi 6 (802.11ax) WFA certification is not yet available. Intel® Wi-Fi 6 AX200 module will be delivered as a pre-certified solution.
  2. Based on the theoretical maximum bandwidth enabled by 2x2 802.11ax 160MHz implementations. Actual wireless throughput and/or range will vary depending on your specific operating system, hardware and software configurations. Check with your device manufacturer for details.
  3. "Nearly 40% higher peak data rates” Intel® Wireless-AX claims are based on the comparison of the expected maximum theoretical data rates for similarly configured 802.11ax and 802.11ac Wi-Fi solutions as documented in IEEE 802.11ax draft 2.0 spec and IEEE 802.11 wireless standard specifications, and require the use of similarly configured 802.11ax wireless network routers.
  4. In accordance with the IEEE 802.1ax PAR. For additional details visit https://mentor.ieee.org/802.11/dcn/14/11-14-0165-01-0hew-802-11-hew-sg-proposed-par.docx.
  5. Bluetooth® 5 Specifications, https://www.bluetooth.com/~/media/files/specification/bluetooth-5-faq.ashx?la=en
  6. Intel® vPro™ Technology is sophisticated and requires setup and activation. Availability of features and results will depend upon the setup and configuration of your hardware, software and IT environment. To learn more visit: http://www.intel.com/technology/vpro.
  7. Requires activation and a system with a corporate network connection, an Intel® AMT-enabled chipset, network hardware and software. For notebooks, Intel® AMT may be unavailable or limited over a host OS-based VPN, when connecting wirelessly, on battery power, sleeping, hibernating or powered off. Results dependent upon hardware, setup & configuration. For more information, visit http://www.intel.com/technology/platform-technology/intel-amt.
  8. Support of Wi-Fi Alliance certifications is OS dependent.
  9. Some security solutions may not be supported by your device operating system and/or by your device manufacturer or may require additional HW (e.g., UICC – SIM card). Check with your device manufacturer for details on availability.
    10 On Microsoft Windows 10*.
    The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Intel Corporation is under license.
    Tests document performance of components on a particular test, in specific systems. Differences in hardware, software, or configuration will affect actual performance. Consult other sources of information to evaluate performance as you consider your purchase. For more complete information about performance and benchmark results, visit http://www.intel.com/benchmarks.
    Estimated results were obtained prior to implementation of recent software patches and firmware updates intended to address exploits referred to as “Spectre” and “Meltdown”. Implementation of these updates may make these results inapplicable to your device or system.
    No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.
    Intel disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or usage in trade. Intel may make changes to specifications and product descriptions at any time, without notice. For the most current product information, please visit http://www.intel.com/wireless.

Intel, the Intel logo, are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
* Other names and brands may be claimed as the property of others.
