DUB802R
Wireless 802.11 b/g/n and BT4.0 USB Module
802.11 b/g/n with Bluetooth 4.0 Combo 1T1R, miniPCIe Type, USB Module



Introduction of Products


Bointec DUB802R is a solder down module of Wireless 802.11bgn with Bluetooth 2.1/3.0/4.0 multi-function network interface controller by USB 2.0.
    It combines a wireless LAN MAC, a 1T1R capable baseband, and RF. Using by Realtek RTL8723BU, it provides a complete solution for a high-performance integrated wireless and Bluetooth device.

    The integration provides better coordination between 802.11 and Bluetooth, and with sophisticated dynamic power control and packet traffic arbitration, it is able to provide the best coexistence performance overview.

    Product Highlight


  • Main Chipset Realtek RTL8723BU
  • IEEE 802.11 b/g/n compliant with 2.4GHz frequency band
  • Bluetooth 2.1+EDR/3.0 and BT4.0 Dual Mode
  • Supporting HT20/HT40 bandwidth
  • 1T1R; antenna outlet two; as diversity
  • 802.11b: 1, 2, 5.5, 11Mbps;
    802.11g: 6, 9, 12, 24, 36, 48,54Mbps ;
    802.11n: Support PHY rate up to 150Mbps.
  • USB /miniPCIe  interface:
    Complies with USB Specification Revision 2.0
  • RoHS & Halogen free compliant / Lead free





Product Name Wireless 802.11 b/g/n and BT4.0 USB Module
Model Name DUB802R V1.1
Version mini PCI-E

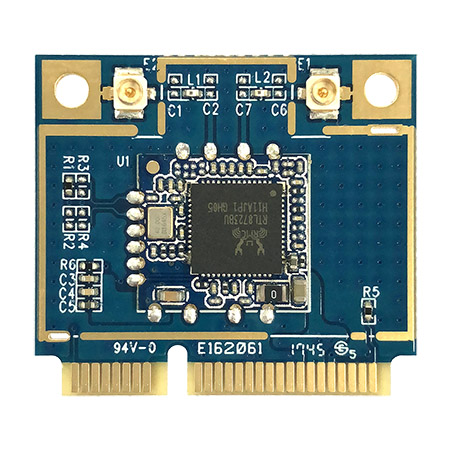

Product Picture
產品圖像
製品画像
Price
價格
価格
USD 20.


General

Main Processor Realtek® RTL8273BU
Frequency band 2.4GHz (2.412 GHz to 2.4835 GHz)
Antenna
Internal  : N/A
External : via pin assignment
Interfaces USB miniPCIe formfactor
Dimension(L*W*H) 29.8mm x 26.8mm ;Tolerance: ± 0.2mm
Operating Voltage 3.3 V ± 0.3V
Power Consumption 96mA at 3.3V(standby)
255mA at 3.3V (TX mode)
Clock Source 40MHz
Temperature 0°C to +50°C (Operation)
-40°C to +85°C (Storage)

Wireless Specification

Standard IEEE 802.11b,g,n
Bandwidth HT20 and HT40
RF Input / Output
1T1R
Modulation 802.11b: CCK, DQPSK, DBPSK
802.11g: 64 QAM, 16 QAM, QPSK, BPSK
802.11n: 64 QAM, 16 QAM, QPSK, BPSK
Work mode Infrastructure, Ad-Hoc
Roaming Support
Data Rate 802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: MCS 0 to 7 (HT20)
802.11n: MCS 0 to 7 (HT40)
Spread Spectrum IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum)
IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing)
RF Output 16dBm@11b
14dBm@11g
13dBm@11n
Sensitivity 1M: -92dBm@8%PER
6M: -89dBm@10%PER
11M:-86dBm@8%PER
54M:-73dBm@10%PER
135M:-67dBm@10%PER
Distance 100M(802.11gn typical)
300M(open space)
Internet Protocols IPv4, TCP/IP
Security Protocols WPA, WPA2-PSK,WEP

Bluetooth Specification

Standard Bluetooth 2.1+EDR
Bluetooth 3.0
Bluetooth 3.0+HS
Bluetooth v4.0
Modulation 8DPSK, π/4 DQPSK, GFSK
Data Rate 1 Mbps for Basic Rate
2,3 Mbps for Enhanced Data Rate
Spread Spectrum FHSS(Frequency-Hopping Spread Spectrum)

Emission

EMC certificate FCC part 15 (USA)
IC RSS210 (Canada)
TELEC (Japan)
ETSI, EN301893, EN60950 (Europe)
VCCI CLASS B

Mechanical and Environment

Dimensions (W x Lx H) 26.65(+/-0.15mm)* 29.85(+/-0.15mm) * 3.37(+/-0.1mm) (2L FR4)
Operating Temperature -10 ~ +60°C
Storage Temperature -40 ~ +80°C
Humidity 5-95% RH@40°C, non-condensing

Power Management

Power Requirement 3.3V+/-9%
Power consumption @ 25°C 802.11 a: 550 mA(avg.)
802.11 b: 405mA(avg.)
802.11 g: 436mA(avg.)
802.11 n(2.4GHz): 365mA(avg.)
802.11 n(5GHz): 445mA(avg.)
Bluetooth(idle mode): 15.1mA(avg.)
Bluetooth(DH5 TX): 68.8mA(avg.)
*data are count as continuously Tx in mA
**The maximum current oonsumption would be impacted by radiation environment and the driver mechanism

Operation System

OS Support Standard driver support: Linux / Android, Microsoft® XP, Vista, Windows7/8
For specific driver for various embedded system(CPU,platform), please contact Bointec Sales
WHQL Microsoft® XP, Visla, Windows 7 Compliant
