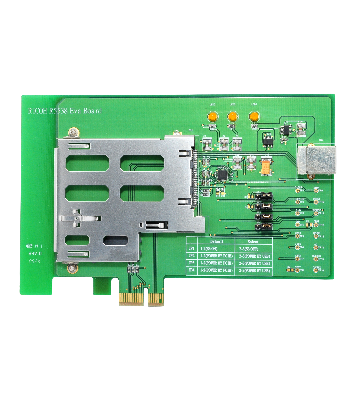

PCE01    ( PCI Express to express card Control Board )

Introduction:

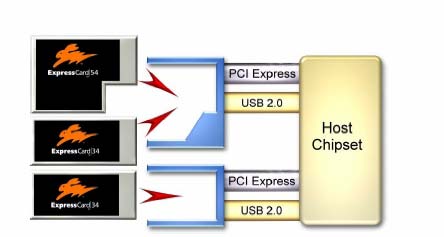

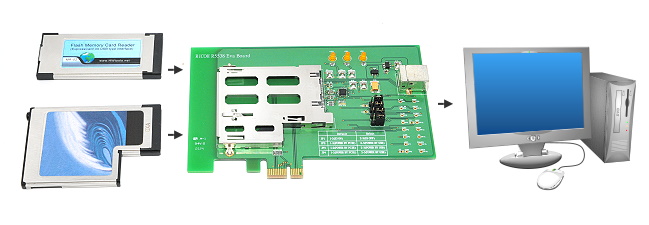

The Latest PCI Express Control Card supports max 2.5Gb/s data rate for a fastest data transfer. This PCE01 accepts both 34mm and 54 mm express card and allows express card’s Hot- Plug and hot swap without power off the system. The PCE01 is an easy and quick installing to extend more applications for personal desktop PC using.

Features

  • Supports 34mm & 54mm Express Card
  • Push- Push card slot for easy insertion of Express Card
  • Install in PCI Express Bus
  • Supports 2.5Gb/s fast data rate
  • Supports 480b/s USB2.0 data rate
  • Enable Hop- Plug and hot swap
  • Maximize card interoperability for user flexibility
  • Better Mini USB 2.0 connector to USB Host connection.



Specification
Input:
34mm Express Cards
54mm Express Cards

Output:
PCI Express
USB 2.0


PCI Express
Transfer rate: 2.5Gbit/sec (5Gbit/sec)

USB Transfer rate:
480Mbit/sec

Power Consumption:

Supporting OS
98/98SE/2000/ME/XP/Vista
MAC10.1.3 above

Safety approval:
CE/ FCC/ VCCI/ BSMI/ RoHS

Dimension:
90mm x 69mm x 12mm

Weight: 55g



Accessories


PCI-e Control Board x1

Mini USB to wafer USB cable x 1

Manual x 1
