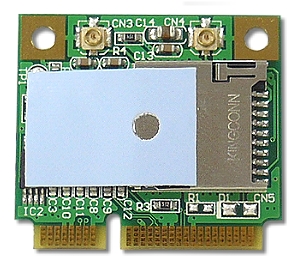

MR-09R   Half size of mPCIe adapter for microSD card

Introduction:

MR09R Mini-Card adapter for SD card is low-cost SSD and Ready-boost solution for laptop computers. Your SD card can easily into the half size of Mini Card slot of newer laptops with MR09R.
The MR09R was the best of the external drives. Solid State Drive (SSD) that delivers extra memory and reliably backs up your important data without cables and the protrusion of other, more awkward external storage devices.

Boosts System Performance in Windows 7. Ideal for use with the minicard SSD is for ReadyBoost. A Windows feature allows you to boost your system performance with fast caching directly to the SD Card. This allows you to access the data stored on your SD card faster than accessing it from your hard disk drive. And PC users can partition the drive for both Ready Boost and storage/backup for ultimate convenience.







Features

• Designed for use with laptop / netbook computers.
• Add IPX connector for Antenna.
• Super low power consumption and light weight, comparing to traditional HDs.
• Extreme high speed: Transfer files up to 25MB/sec. 50MHz(max)/4bit for SDHC.
  Note: Actual throughput may vary based on the SD card speed and computer configuration.

• Compatible with Windows 7 / Vista / XP sp3 (Use Microsoft Inbox driver, NO need install special driver).



Support Cards type:
• MicroSD/MicroSDHC,(Class 2/4/6)
• MMC Plus and MMC Mobile. (4bit only)
• MicroSDIO(GPS, Wi-Fi, Bluetooth)



Product Specifications:
• PCI Express Mini Card Electromechanical Specification 1.0 (Use PCIe interface)
• Input Socket SDHC / SD (SD Specification 2.0)
• Compliant with SD Host Controller Standard Specification 1.0
• Compliant with SDIO Specification 1.1
• Compliant with SD Memory Card Specification Version 2.0
• 30mm x 26.8mm dimension



Support OS:
• Microsoft Windows XP / VISTAS / Windows 7



Notice:

1. MR09R is standard SD HOST controller of PCIe interface adapter. Design for Extension/Secondary HDD. Application for ready-boost and backup/Storage functions.

2. To use SDHC Card(SD Card>2GB) on Windows XP, your system requires SP3 Update or Windows XP (KB934428).
   http://support.microsoft.com/kb/934428
3. To use SD Memory Card Formatting Software, Please download file from Panasonic’s web-site as below:
   http://panasonic.jp/support/global/cs/sd/download/sd_formatter.html
   Please backup your data before using the formatting program.
4. To use SDIO wireless Cards on Windows 7, your system requires choose Microsoft SDA host inbox driver. And SP1 Update or Windows 7 (KB983177) hotfix update.

MR09R Package Contents	Unit price: US$ 12
MR09R (Half size of mPCIe adapter for microSD card) x1	Screw x2

OPTION	Unit price: US$ 2
Metal Baffle Package Contents
Metal Baffle (Half to Full miniCard Bracket)	Screw x4
