PCI-E / Mini PCI-E adapter


Introduction:

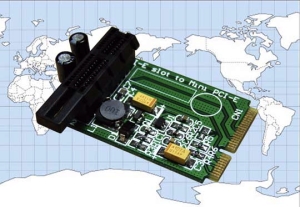

The PCI-E 1x to Mini PCI-E Card 1.0 is a
debug tool for PCI-E interface card.

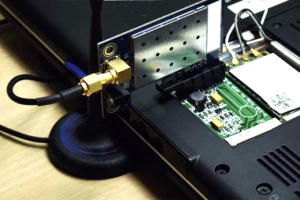

This module allows you to use your existing PCI-Express Add-in-Card in the Mini PCI-E slot.
It's especially designed to save valuable labor and time in the production environment.
As a powerful tool for engineers, the PCI-E 1x to Mini PCI-E Card 1.0 is constructed of high quality components for years of trouble free service.





Features



Requirements



Product Specifications

Dimension: Width 40mm, Length 78.5mm, PCB Thickness 1.0mm Max







Documents Download
Brief (PDF):   Taiwan   Taiwan 2   China Mirror
Dimension (PDF):   Taiwan   Taiwan 2   China Mirror
Schematic (PDF):   Taiwan   Taiwan 2   China Mirror
