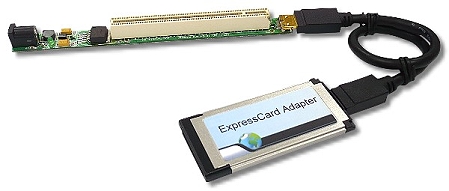

PE4 ( PCI-E 16X to expresscard / 34 adaptor with cable )


The PCI-E 16X to Express Card / 34 adaptor is designed for Notebook PCs that converts PCI Express 1X, 4X, 8X, 16X Card to Express card Interface.

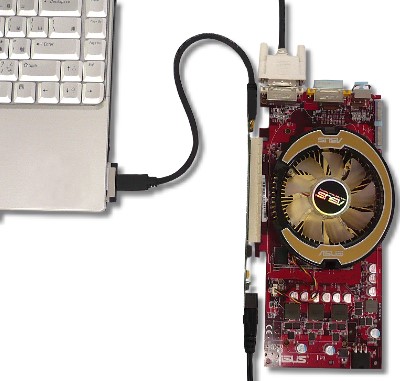

This adapter allows you to use your existingPCI-E add-in Card in the notebook PC.















PE4 is engineering sample test now. It can detect standard PCIe add-in card in NOTEBOOOK, but we cannot guarantee PCIe add-in card compatibility with your NOTEBOOK. The functions may not work properly.


Product Specifications:


Package Contents:
Express card to the converted port adaptor X1
Converted port to Express card adapter x1
Custom PCI-E Male to Male cable 30cm x1
(option) PCI-E Male to Male cable 100cm x1


PE2, PE4 products functions comparison as below:
PE2 specification: PE4 specification:

Internal 12V/0.2A(Max), 3.3V/1.3A(Max)
x1 PCI express support
Use 30CM custom PCIe x1 cable

External 100V~240V AC to 12V/5A(Max), 3.3V/3A(Max) DC adapter
x1 x4 x8 x16 PCI express card support
Use 300CM, 200CM, 150CM, 100CM or 30CM length custom PCIe x1 cable
